מאפיינים
|

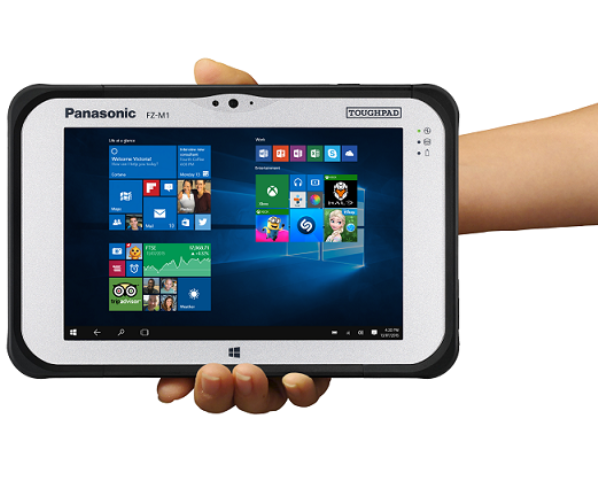

•7" Rugged Tablet with Windows 10 Pro - Intel® Core™ i5 vPro™ processor
•MIL-STD-810G, 5' Drop and All-weather IP65 Dust and Water-resistant Design
•User-replaceable Battery, Bridge Battery and Optional Long Life Battery
•Optional NFC, Ethernet, Serial, SmartCard,Magstripe, UHF RFID and Barcode Reader
•Wi-Fi, Bluetooth® and Optional Dedicated GPS or 4G LTE Multi Carrier Mobile Broadband, Optional models Thermal Camera, Realsense Camera and GPS/RTK
|
|
מערכת הפעלה
|
Windows® 10 Pro 64-bit
|
|
מעבד
|
7th generation Intel® Core™ i5 vPro™ processor
Intel® CoreTM i5-7Y57 Processor
– 1.2 GHz up to 3.3 GHz with Intel® Turbo Boost Technology
– 4MB cache
|
|
זכרון
|
4GB SDRAM LPDDR3
|
|
אחסון
|
256GB SSD with heaters
|
|
מסך
|
7" WXGA 1280 x 800
10point capacitive gloved multi touch
2 – 700nit
Anti-reflective (AR) clear
Intel® HD Graphics 615, Premium (Built-in Chip Set)4
Dual monitor support
Concealed mode (configurable
|
|
אודיו
|
Built-in Directional Array Microphones
Intel® High Definition Audio subsystem support
Integrated speaker
On-screen and button volume and mute controls
|
|
מצלמה
|
Front: 2MP(USB) webcam with Dual Microphone
Rear: 8MP MIPI, with Camera Flash LED
|
|
מקלדת וכניסות
|
Stylus pen with integrated stylus holder
Touch Screen Mode Options: Pen Only, Pen and Touch, Touch Only, Touch Only-Glove,Touch Only-Water
6tablet buttons (2 user-definable)
On-screen QWERTY keyboard
|
|
ממשק כניסות חיבורים
|
Docking connector 24-pin
Headphones/Mic 3.5mm Jack, Stereo
USB 3.0 (x 1) Type A
Optional USB 2.0 (x 1)1,9 Type A
MicroSDXC UHS-I
Optional 10/100/1000 Ethernet1,9 RJ-45
|
|
תקשורת אלחוטית
|
4G LTE multi carrier mobile broadband with satellite GPS7
Optional GPS (u-blox NEO-M8N)1,7,8
Optional dual high-gain antenna pass-through
Intel® Dual Band Wireless-AC 8265 Wi Fi 802.11a/b/g/n/ac
Bluetooth® v4.2 (Class 1
|
|
מתח
|
Li-Ion battery pack3:
– Standard battery: 7.2V, typical 3220mAh, min. 3050mAh
– Long life battery: 7.2V, typical 7100mAh, min. 6800mAh
Battery operation3:
– Standard battery: 8 hours
– Optional long life battery: 16 hours
– Standard bridge battery: 1 minute swap time
Battery charging time3:
– Standard battery: 2.5 hours off, 3.5 hours on
– Optional long life battery: 4.5 hours off, 6.5 hours on
Bridge battery1: 1 minute hot swap time
AC Adapter: AC 100V-240V 50/60Hz
|
|
אבטחה
|
Password Security: Supervisor, User, Hard Disk Lock
Kensington cable lock slot
Trusted platform module (TPM) security chip v 2.04
Persistence® technology by Absolute embedded in BIOS8
Optional insertable SmartCard reader (half size or full size)1,8
Optional contactless RFID and SmartCard/NFC reader1,8
– ISO 14443 A/B compliant
|
|
מידות ומשקל
|
7.98"(L) x 5.20"(W) x 0.71"(H)
|
|
אחריות
|
3year limited warranty, parts and labor
|
|
אופציה
|
Choice of 4G LTE multi carrier mobile broadband with satellite GPS, or
dedicated GPS1,7,8
UHF 900MHz RFID reader (EPC Gen 2)1
Choice of 2D barcode reader, Ethernet, Serial, 2nd USB2.01,9
Choice of insertable SmartCard, contactless SmartCard/NFC, magstripe,
Serial&Ethernet, full size SD card&Ethernet, RTK GPS, Dedicated GPS, full size
SmartCard or rugged fisher port1
|
|
אופציות נוספות
|
Thermal Camera (Flir Lepton 3.5)1
Intel Real Sense Camera (D410)
RTK/GPS Model8
MRZ Model (Passport Reader+MSR)
Black Cabinet Option
|
|
סרטון וידאו
|
|
|
סרטון נוסף
|
|
|
הערות
|
כולל קורא ברקוד, LTE, מנשא ליד, בלוטוס, ועט.
|
