Projection Technology 3LCD Technology
Native Resolution
1920 x 1200 (WUXGA)
Aspect Ratio 16:10
Contrast Ratio 1 3000000:1
Brightness 1 8000 Lm Normal / 8300 Lm Center / 7200 Lm Silent Mode
Lamp Laser Light Source
Light Source Life [hrs] 20000 2
Lens 5 manual lens options; 5 motorized lens options
Lense Adjustment Motorized and manual (depending on lens)
Lens shift H:±20, V:+10,-50
Keystone correction +/- 30° manual horizontal / +/- 30° manual vertical
Projection Factor depending on lens selection (std. option NP13ZL at 1.46-2.95:1)
Projection Distance [m] 0.7 – 50.9
Screen Size (diagonal) [cm] / [inch] Maximum: 1,270 / 500"; Minimum: 101.6 / 40"
Zoom Motorized and manual (depending on lens)
Focus Adjustment Motorized and manual (depending on lens)
Supported Resolutions
1080i/50/60;
1080p/50/60;
1280 x 768 (60);
1920 x 1200 (60);
3840 x 2160 (23.8/24/25/29.97/30);
480p/60;
576p/50;
720p/60
Frequency Horizontal: analog: 0-0 kHz, digital: 15/24-100 kHz; Vertical: 50 – 120 Hz
|
|

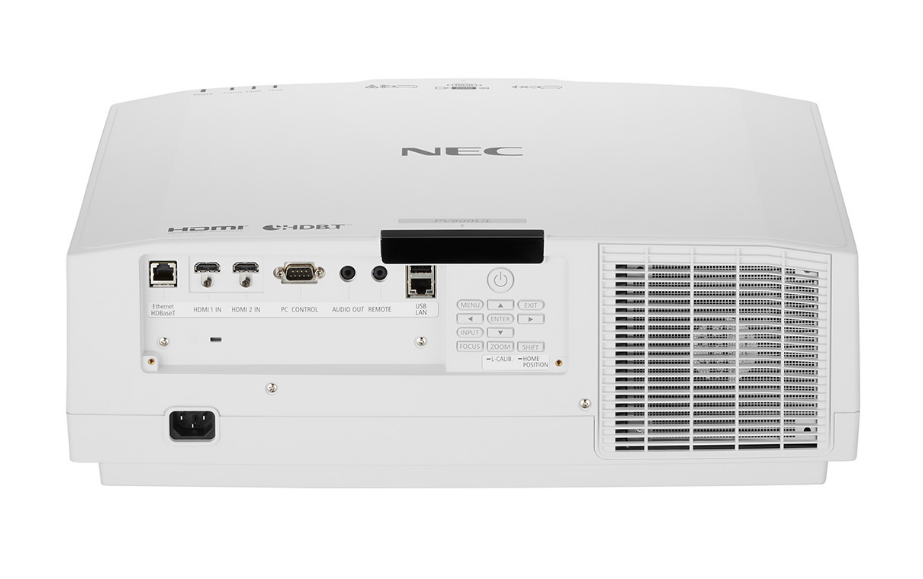

חיבורים
|
Digital Input: 1 x HDBaseT; 2 x HDMI™ supporting HDCP 1.4
Audio Input: 1 x HDBaseT audio support; 2 x HDMI audio support
Output: 1 x 3.5 mm Stereo Mini Jack (variable)
Control Input: 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet
LAN 1 x RJ45
USB 1 x Type A (USB 2.0 high speed)
|
|
Remote Control
|
Audio Control; Digital Zoom; HDMI; ID Select; ID set; Keystone Correction; Picture Adjust; Picture Mute; Power (On-OFF); Select (up, down, left, right); Shutter function; Source Select; Test Picture; Zoom/Focus and Lens Shift Control
Electrical
1 x 3.5 mm Stereo Mini Jack
|
|
ELECTRICAL
|
Power Supply 100-240 V AC; 50 - 60 Hz
Power Consumption [W] 467.0 Normal / 421.0 Silent Mode / 2.0 Network Stand-by / 0.5 Stand-by
|
|
מידות ומשקל
|
Dimensions (W x H x D) [mm] 499 x 164 x 407 (without lens and feet)
Weight [kg] 11.2
Fan Noise [dB (A)] 42 / 32 (Normal / Silent)
Colour Versions Black; White
|
|
סביבה
|
Operating Temperature [°C] 0 to 40
Operating Humidity [%] 20 to 80 non-condensing
Storage Temperature [°C] -10 to 50
Storage Humidity [%] 20 to 80 non-condensing
|
|
ERGONOMICS
|
CE EAC ErP RoHS TUEV Type Approved Tuv GS
|
|
תכונות
|
AMX Beacon; Crestron RoomView; DICOM simulation; Direct Power-Off Function; Free Tilt; HDBaseT; High Altitude Mode; HTTP Browser Control; Keystone Correction (H=±40°, V=±40°); LAN control; Lens Memory; Lens Shift (vertical +0.5 max/-0.1 max, horizontal ± 0.3 max.); Light Source Adjustment; Manual Wall Color Correction; NaViSet Administrator 2; Optional User Logo; OSD with 27 languages; Password Security System; PJ LINK; Portrait Setting; RS-232 Control; Test Pattern; Up to 20,000 hrs Light Source Life
|
|
