מעבד
|
1.Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
2.L3 cache varies with CPU
|
|
שבב
|
Intel® B365 Express Chipset
|
|
זכרון
|
2x DDR4 DIMM sockets supporting up to 32 GB of system memory
Dual channel memory architecture
Support for DDR4 2666/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
* To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.
(Please refer "Memory Support List" for more information.)
|
|
גרפיקת לוח
|
Integrated Graphics Processor-Intel® HD Graphics support:
1x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2.
Maximum shared memory of 1 GB
|
|
אודיו
|
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
|
|
LAN
|
Realtek® GbE LAN chip (10/100/1000 Mbit)
|
|
הרחבה
|
1x PCI Express x16 slot, running at x16
1x PCI Express x1 slot
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
|
|
ממשק אחסון
|
Chipset:
1x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
4x SATA 6Gb/s connectors
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
|
|
USB
|
Chipset:
6x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
6x USB 2.0/1.1 ports (2 ports on the back panel, 4ports available through the internal USB headers)
|
|

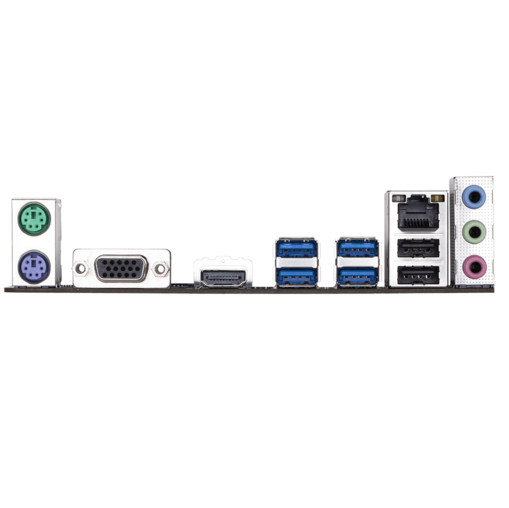

חיבורים אחורים
|
1x PS/2 mouse port
1x PS/2 Keyboard port
1x D-Sub port
1x HDMI port
4x USB 3.1 Gen 1 ports
2x USB 2.0/1.1 ports
1x RJ-45 port
3x audio jacks
|
|
I/O Controller
|
iTE® I/O Controller Chip
|
|
H/W Monitoring
|
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
|
|
BIOS
|
1x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
|
תכונות נוספות
|
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
USB Blocker
V-Tuner
Support for Q-Flash
Support for Xpress Install
|
|
תוכנה
|
Norton® Internet Security (OEM version)
|
|
תמיכת מערכות הפעלה
|
Support for Windows 10 64-bit
|
|
מידות
|
Micro ATX Form Factor; 22.6cm x 18.5cm
|
|
הערה
|
ללא פחית אחורית!!!!
|
