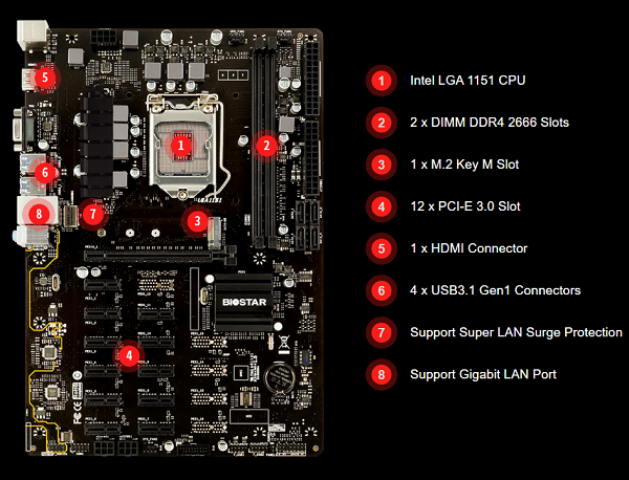

CPU SUPPORT
|
9th Gen Intel® Core™ i9 LGA 1151 Processor
9th Gen Intel® Core™ i7 LGA 1151 Processor
9th Gen Intel® Core™ i5 LGA 1151 Processor
9th Gen Intel® Core™ i3 LGA 1151 Processor
8th Gen Intel® Core™ i7 LGA 1151 Processor
8th Gen Intel® Core™ i5 LGA 1151 Processor
8th Gen Intel® Core™ i3 LGA 1151 Processor
8th Gen Intel® Pentium® LGA 1151 Processor
8th Gen Intel® Celeron® LGA 1151 Processor
Maximum CPU TDP (Thermal Design Power) : 95Watt
8th *Generation Intel® Core™ Processor Family only support 300-Series.
|
MEMORY
|
Support Dual Channel DDR4 1866/ 2133/ 2400/ 2666 MHz
2 x DDR4 DIMM Memory Slot
Max. Supports up to 32GB Memory
Each DIMM supports non-ECC 4/8/16GB DDR4 module
|
INTEGRATED VIDEO
|
By CPU model
Supports DX12
Supports HDCP
|
STORAGE
|
4 x SATA III Connectors (6GB/s)
1 x M.2 (M Key) Connector(6Gb/s): Support SATA SSD
|
LAN
|
Realtek RTL8111H - 10/100/1000Mb/s Controller
Support Super LAN Surge Protection
|
AUDIO CODEC
|
Realtek ALC887 8-Channel HD Audio
|
USB
|
6 x USB 3.1 Gen1 Ports (4 on rear I/Os and 2 via internal header)
6 x USB 2.0 Ports (2 on rear I/Os and 4 via internal header)
|
EXPANSION SLOT
|
1 x PCI-E 3.0 x16 Slot
11 x PCI-E 3.0 x1 Slots

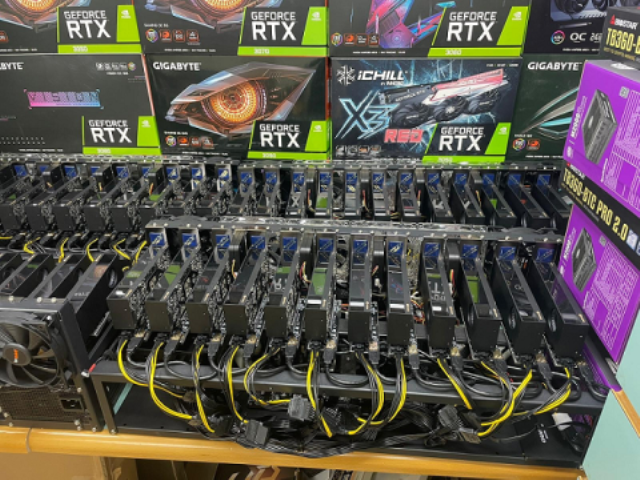

*Maximum VGA cards mining support are depending on VGA Driver or mining software
|
REAR I/O
|
1 x PS/2 Mouse
1 x PS/2 Keyboard
4 x USB 3.1 Gen1 Ports
2 x USB 2.0 Ports
1 x HDMI Connector ,resolution up to 4096 x 2160@24Hz, compliant with HDMI 1.4
1 x VGA Port ,resolution up to 1920 x 1200 @60Hz
1 x LAN Port
3 x Audio Jacks
|
INTERNAL I/O
|
1 x USB 3.1 Gen1 Header (each header supports 2 USB 3.1(Gen1) ports)
2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)
4 x SATA III Connectors (6Gb/s)
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Connector
2 x System Fan Connector
1 x 8-Pin Power Connector
2 x 6-Pin PCIe Power Connector
2 x 24-Pin Power Connector
1 x Clear CMOS Header
1 x COM Port Header
|
H/W MONITORING
|
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
|
DIMENSION
|
ATX Form Factor Dimension: 30.5cm x 21.0cm ( W x L )
|
