מאפיינים
|
Ultra-compact server שרת
עד 8 דיסקים שליפים 5.2"
250W PSU
Intel Xeon E3-1220v6 4C/4T 3.00 GHz מעבד
16GB (1X16GB) 2RX8 DDR4-2400 U ECC זיכרון
HD SATA 6G 1TB 7.2K NO HOT PL 3.5" ECO דיסקים
|
|
Mainboard
|
Mainboard type D3373
Chipset Intel® C236
Processor quantity and type 1 x Intel® Xeon® processor E3-1200 v6 product family / Intel® Core™ i3 processor / Intel® Pentium® processor
|
|
Memoey
|
Memory slots 4
Memory slot type DIMM (DDR4)
Memory capacity (min. - max.) 4 GB - 64 GB
Memory protection ECC
Memory notes Mix and match possible; with dual channel operation better performance (2 modules with equal capacity necessary).
Single channel (1 module) configuration possible.
Memory modules notes 2,400 MHz memory modules
|
|
Interfaces
|
USB 2.0 ports 5 (4x external rear, 1x internal for UFM, no USB wakeup supported)
USB 3.0 ports 5 (2x external rear, 2x external front, 1x internal)
Graphics (15-pin) 1 analog graphics interface derived from iRMC (up to 1600x1200 or 1920x1080 at 16bpp)
Serial 1 (9-pin) 1 serial RS-232-C
LAN / Ethernet 2 x1 Gb/s Ethernet; RJ45
Management LAN (RJ45) 1 x dedicated management LAN port for iRMC S4 (10/100/1000 Mbit/s)
Management LAN traffic can be switched to shared onboard Gbit LAN port
|
|
Onboard or integrated Controller
|
RAID controller Optionally integrated RAID 0/1 or RAID 5/6 controller for SAS base units (occupies one PCIe slot).
All hardware storage controller options are described under Components
SATA Controller Intel® C236, 2 ports used for accessible drives
SATA controller type notes 4 port for internal SATA HDDs with RAID 0, 1, 10 for Windows and Linux
LAN Controller Intel® i210 onboard
2 x 10/100/1000 Mbit/s Ethernet
iSCSI, PXE-Boot and WoL are supported
Remote management controller Integrated Remote Management Controller (iRMC S4, 256 MB attached memory incl. graphics controller)
IPMI 2.0 compatible
Trusted Platform Module (TPM) Infineon / TPM 1.2 or TPM 2.0 module; TCG compliant (option)
|
|
Slots
|
PCI-Express 3.0 x1 (mech. x4) 1 x Low profile
PCI-Express 3.0 x4 1 x Low profile
Data Sheet Fujitsu PRIMERGY TX1320 M3 Server
Page 4 / 9 www.fujitsu.com/global/products/computing/servers/primergy/tower/tx1320m3/
Slots
PCI-Express 3.0 x8 2 x Low profile notched
Slot Notes In SAS configuration 1x PCI-Express occupied by modular RAID controller.
|
|
Drive bays
|
Storage drive bays 3.5-inch non hot-plug or 2.5-inch hot-plug SAS/SATA
Storage drive bay configuration Not upgradeable in the field.
Accessible drive bays 1 x 3.5/1.6-inch for backup devices
1 x 5.25/0.5-inch for CD-RW/DVD
Storage drive bays Max. 8x (4x + 4x) x 2.5-inch hot-plug Max. 2 x 3.5-inch non hot-plug SATA
|
|
Fan Configuration
|
Number of fans 3
Fan notes Processor fan, rear fan, drive fan, additional drive fan if 8x HDD extension is used
|
|
Operating panel
|
Operating buttons On/off switch
NMI button
Reset button
Status LEDs System status (orange / yellow)
Identification (blue)
Hard disks access (green)
Power (orange / green)

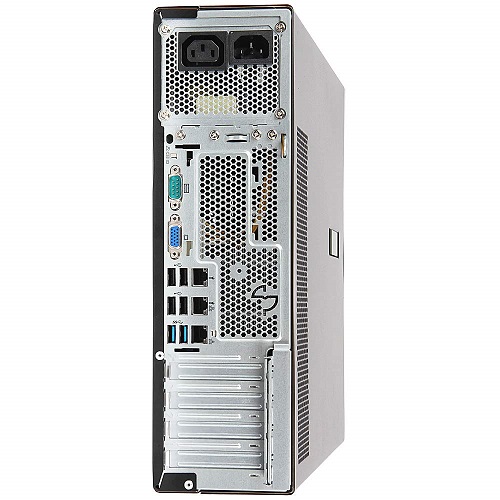

At system rear side:
System status (orange / yellow)
Identification (blue)
LAN connection (green)
LAN speed (green / yellow)
CSS (yellow)
|
|
Dimensions / Weight
|
Floor-stand (W x D x H) 98 x 399 x 340 mm
Dimension notes without feet
Weight up to 10 kg
Weight notes Actual weight may vary depending on configuration
|
|
Environment
|
Operating ambient temperature 5 - 40 °C (41 - 104 °F)
Operating temperature note Cool-safe® Advanced Thermal Design (above 35 °C or below 10 °C) depending on configuration. For detailed
information see relevant system configurator.
Operating relative humidity 10 - 85 % (non condensing)
Operating environment FTS 04230 – Guideline for Data Center (installation specification)
Operating environment link http://docs.ts.fujitsu.com/dl.aspx?id=e4813edf-4a27-461a-8184-983092c12dbe
Sound pressure (LpAm) 25 / 35 dB(A) (min / max idle), 25 / 35 db(A) (min / max operating)
Sound power (LWAd; 1B = 10dB) 4.1 / 5.1 B (min / max idle), 4.1 / 5.1 B (min / max operating)
Noise notes Noise emissions and operation modes depend on system configuration.
|
|
Electrical values
|
Power supply configuration 1 x standard, 1 x hot-plug, 2 x hot-plug redundant, 1 x hot-plug + 1 x Fujitsu FJBU internal battery backup unit
(depending on
Model)
Active power (max. configuration) 231 W
Apparent power (max. configuration) 235 VA
Heat emission (max. configuration) 831.6 kJ/h (788.2 BTU/h)
Rated current max. 5 A (100 V) / 2.5 A (240 V)
Active power note To estimate the power consumption of different configurations use the Power Calculator of the System Architect:
http://configurator.ts.fujitsu.com/public/
Power supply 250W standard, 90% (Gold efficiency), 100-240V, 50 / 60Hz
450W hot-plug, 94% (Platinum efficiency), 100-240V, 50 / 60Hz
|
|
Compliance
|
Global CB
RoHS (Substance limitations in accordance with global RoHS regulations)
WEEE (Waste electrical and electronical equipment)
Germany GS
Europe CE
USA/Canada CSA us
ULc/us
FCC Class A
Japan VCCI Class A
Russia GOST-R
South Korea KC
China CCC
Australia/New Zealand C-Tick
Taiwan BSMI
Compliance link https://sp.ts.fujitsu.com/sites/certificates
Compliance notes * Warning:
This is a class A product. In a domestic environment this product may cause radio interference in which case the user
may be required to take adequate measures.
|
|
Optical drives
|
Backup Drives RDX Drive, 320 GB, 500 GB, 1 TB , 25 MB/s, half height, USB 3.0
Optical drives Blu-ray Disc™ Triple Writer, (6x BD-RW, 8x DVD, 24x CD), ultraslim, SATA I
DVD Super Multi ultra slim , (8x DVD; 24x CD), ultraslim, SATA I
|
