תצוגה
|
LCD panel type VA LCD
Backlight type W-LED system
Panel Size 48.8"/124 cm
Display Screen Coating Anti-Glare, 2H, Haze 25%

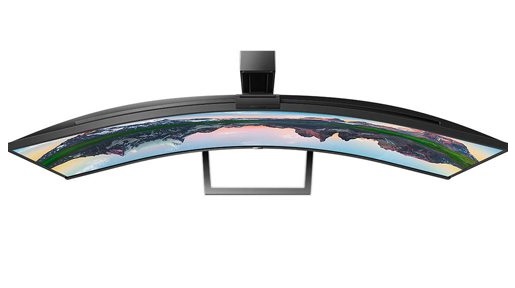

Effective viewing area 1193.5 (H) x 335.7 (V) mm at 1800 R curvature*
Aspect ratio 32:9
Optimum resolution 5120 x 1440 @ 60 Hz
Pixel Density 109 PPI
Response time (typical) 5 ms (Grey to Grey)*
Brightness 450 cd/m²
Contrast ratio (typical) 3000:1
SmartContrast 80,000,000:1
Pixel pitch 0.233 x 0.233 mm
Viewing angle • 178º (H)/178º (V)
• @ C/R > 10
Flicker-free Yes
Picture enhancement SmartImage
Display colours 16.7 M
Colour gamut (min.) BT. 709 Coverage: 99.67%*, DCI-P3 Coverage: 94.62%*
Colour gamut (typical) NTSC 103%*, sRGB 121%*, Adobe RGB 91%*
HDR DisplayHDR 400 certified (DP/HDMI)
Scanning Frequency 30–230kHz (H)/48–70 Hz
(V); Adaptive sync (forHDMI/DP)
SmartUniformity 97~102%
Delta E < 2
sRGB Yes
LowBlue Mode Yes
EasyRead Yes
Adaptive sync Yes
|
קישוריות
|
Signal Input DisplayPort 1.4* x 1, HDMI 2.0 b x2
, USB-C 3.1 Gen 2 x 1 (upstream, power delivery up to 65 W)
HDCP HDCP 2.2 (HDMI/DP/USB-C)
USB: USB 3.1 x 1 (upstream), USB 3.1 x 3 (downstream with x 1 fast charge B.C 1.2)
Audio (In/Out) Headphone out
RJ45 Ethernet LAN (10M/100M/1G)
Sync Input • Separate Sync
• Sync on Green
|
עגינה ל- USB
|
USB-C Reversible plug connector
Super speed Data and Video transfer
DP Built-in Display Port Alt mode
USB-C power delivery USB PD version 2.0
USB-C max. power delivery Up to 65 W (5 V/3 A;
9 V/3 A; 10 V/3 A;12 V/3 A; 15 V/3 A; 20 V/3.25 A)
|
נוחות
|
Built-in Speakers 5 W x 2
Built-in webcam 2.0 megapixel FHD camera with microphone and LED indicator (for Windows 10 Hello)
MultiView PBP (2 x devices)
User convenience • SmartImage
• Input
• User
• Menu
• Power On/Off
Control software SmartControl
Other convenience • Kensington lock
• VESA mount (100 x 100 mm)
Plug and Play Compatibility • DDC/CI
• Mac OS X
• sRGB
• Windows 10 / 8.1 / 8 / 7
|
מעמד
|
Height adjustment 130 mm
Swivel -/+ 20 degree
Tilt -5~10 degree
|
מתח
|
ECO mode 43.3 W (typ.)
On mode 45 W (typ.) (EnergyStar 7.0 test method)
Standby mode 0.3 W (typ.)
Off mode Zero watts with Zero switch
Energy Label Class B
Power LED indicator • Operation - White
• Standby mode - White (flashing)
Power supply • Built-in
• 100-240 VAC, 50-60 Hz
|
מידות
|
Product with stand (max height) 1194 x 568 x 303 mm
Product without stand (mm) 1194 x 369 x 156 mm
Packaging in mm (W x H x D) 1308 x 384 x 553 mm
|
משקל
|
Product with stand (kg) 15.30 kg
Product without stand (kg) 11.00 kg
Product with packaging (kg) 21.48 kg
|
סביבת עבודה
|
Temperature range (operation) 0°C to 40°C °C
Temperature range (storage) -20°C to 60°C °C
Relative humidity 20%–80% %
Altitude Operation: +12,000 ft (3658 m), Non-
operation: +40,000 ft (12,192 m)
MTBF (demonstrated) 70,000 hrs (excluded backlight)
|
תכולת הערכה
|
Monitor with stand Yes
Cables HDMI cable, DP cable, USB-A to B cable,
USB-C to C cable, USB-C to A cable, Power cable
User Documentation Yes
|
